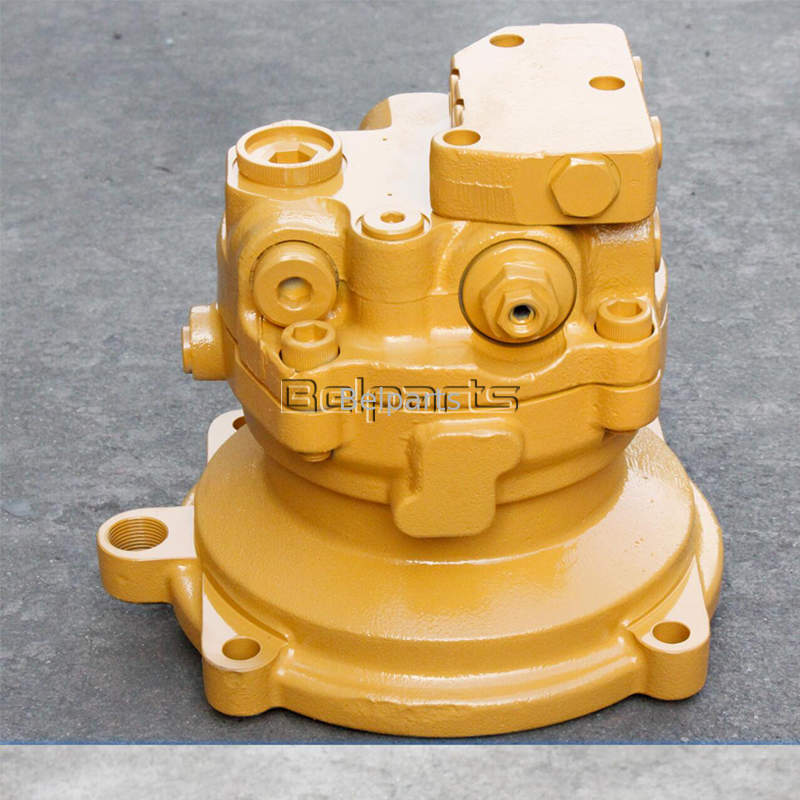

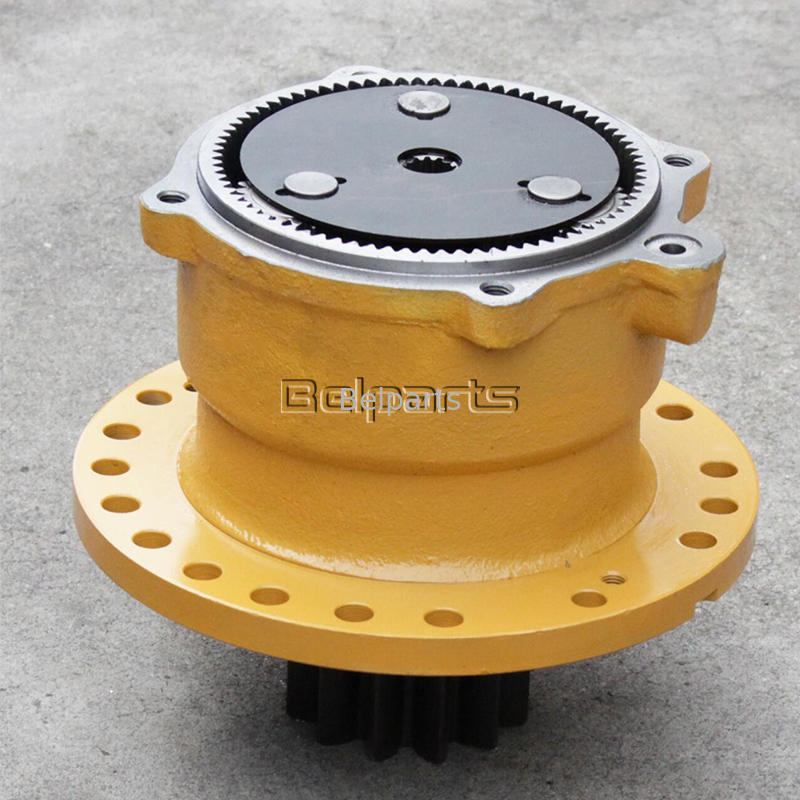

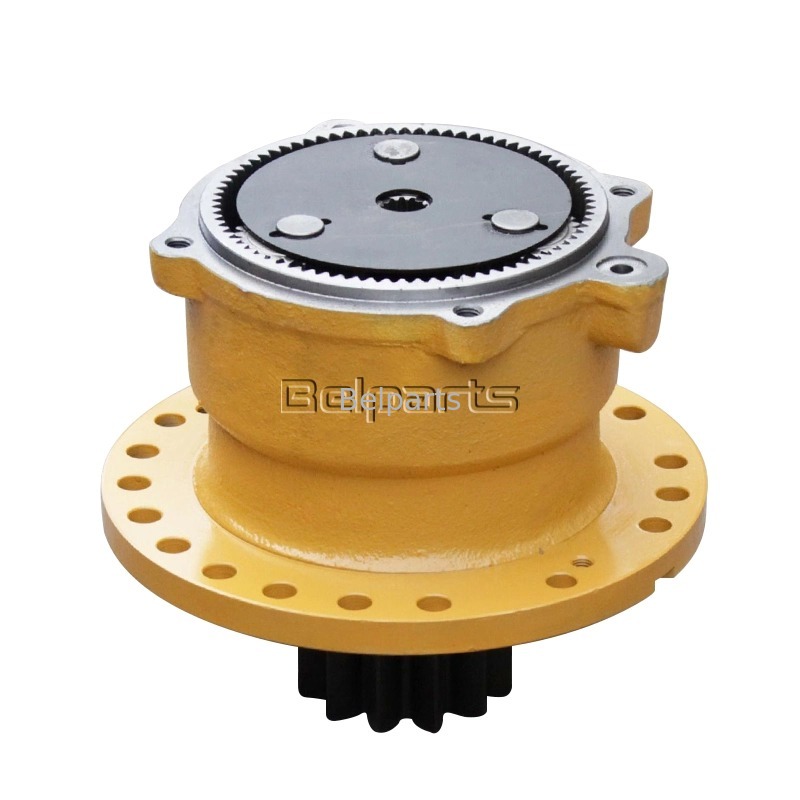

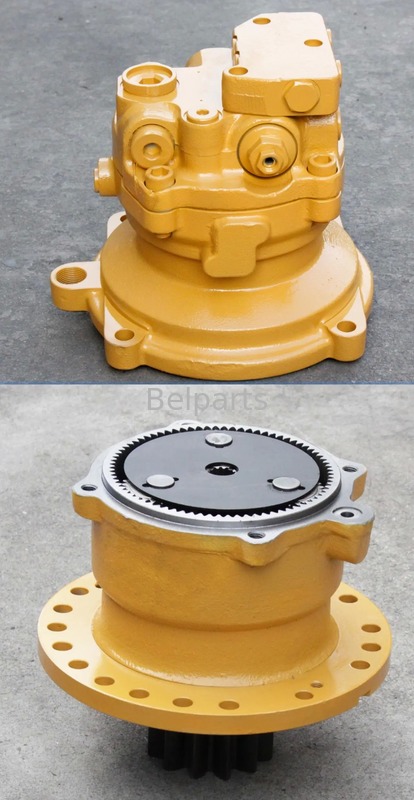

Name: Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: E308
Price: 475.00 USD
Availability: InStock

Evde > Ürünler > Salıncak Motor Takma >

Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator

Excavator swing motor assy 312-6319

E308 mini excavator swing motor

Swing motor assy 2042748

Menşe yeri:

Çin yapımı

Marka adı:

Belparts

Model numarası:

E308

Bizimle İletişim

Teklif Et

Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator

Ürün Ayrıntıları

Model:

E308

Parça numarası:

312-6319 2042748

Model adı:

Ekskavatör salıncak motoru assy

Vurgulamak:

Swing Motor Assy E308 312-6319 2042748 Hidrolik Motor

Parça adı:

ekskavatör eğik motoru

Başvuru:

Ekskavatör, Mühendislik makine ekipmanları

Ürün adı:

Salıncak motoru

Durum:

Yeni/Kullanılmış

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 parça

Fiyat

Negotiable price

Ambalaj bilgileri

Ahşap paketleme

Teslim süresi

1-7 gün

Ödeme koşulları

T/T, PayPal ve Ticaret Güvencesi

Yetenek temini

1000 kişi

İlişkili Ürünler

Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator

En İyi Fiyatı Alın

Belparts swing motor assy E308 312-6319 2042748 hydraulic motor

En İyi Fiyatı Alın

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi

En İyi Fiyatı Alın

Hitachi excavator EX75UR-1 EX60UR-1 swing motor MSF-52P 4469027 hydraulic motor kit

En İyi Fiyatı Alın

Bizimle İletişim

+86 13247509480

belparts02@gmail.com

86-020-32384870

Şimdi iletişime geçin

Ürün Tanımı

Excavator parts 312-6319 2042748 swing motor assy for E308 mini excavator

Product Specifications

Attribute	Value
Model	E308
Part Number	312-6319 2042748
Model Name	Excavator swing motor
Part Name	Swing motor assy
Brand	belparts
Condition	New/Used
Payment Methods	T/T, PayPal, Trade Assu

Aggregate

Part No	Part Name	Price request
2042748	MOTOR GROUP-SWING

List of spare parts

#	Part No	Part Name	Qty.
1	1397324	PIN	2
2	1884058	HEAD	1
3	1884059	VALVE-CHECK (MAKEUP OIL)	2
4	1884061	SPRING	2
5	0951587	SEAL-O-RING (ID=20.80mm)	2
6	1884060	PLUG	2
7	2042749	VALVE GROUP-RELIEF (CUSHION CROSSOVER)	2
8	8T4971	BOLT-PLT (M6 X 1.0 X 30)	2
9	1850353	VALVE GROUP-PILOT	1
10	0959805	BOLT-SOCKET HEAD (M14X2X40-MM)	4
11	1500883	PIN	2
12	1884053	SEAL	1
13	0951632	SEAL (ID=129.60mm)	1
14	0951575	SEAL - O-RING (7.80 MM ID)	1
15	1397308	PLUG	1
16	1850354	BODY	1
17	1850358	PLATE (THRUST)	1
18	1850357	SHAFT	1
19	1B3867	BALL BEARING	1
20	1850355	SEAL	1
21	1884047	GUIDE	1
22	1884046	RETAINER	1
23	1884048	PISTON	9
24	1884065	PLATE	4
25	1884066	PLATE	2
26	1884049	PLATE-FRICTION (FRICTION)	1
27	1500885	SEAL	2
28	0951723	SEAL-O-RING (ID=144.40mm)	1
29	1884050	COLLAR	1
30	1884051	PISTON (BRAKE)	1
31	1884056	SEAL	1
32	1884054	SPRING	12
33	1884055	SPRING	8
34	1884045	PIN	3
35	1884052	PLATE (VALVE)	1
36	1397358	BOLT	3
37	1500886	SEAL	3
38	1850352	VALVE GROUP-SWING CUSHION	1
39	5F8651	BALL BEARING	1
40	1884043	SPACER (31X40X2-MM THK)	1
41	1884041	SPACER (31X40X2.5-MM THK)	1
42	8C3110	RING-RETAINING	1
43	1884042	SPRING	1
44	0997078	PIN	1
45	1850359	BARREL	1
46	1373688	ORIFICE	1
		METRIC PART

In terms of function realization, the swing motor not only undertakes the role of power output but also has the functions of speed regulation and brake control. Through the flow control valve of the hydraulic system, the flow of hydraulic oil entering the motor can be adjusted to change the swing speed—large flow corresponds to high-speed swing, which is suitable for quickly adjusting the working position; small flow corresponds to low-speed swing, which is suitable for precise positioning (such as accurate unloading). In addition, the built-in brake device of the motor can quickly lock the output shaft when the oil supply is stopped, preventing the upper body from sliding due to inertia and ensuring operation safety.
